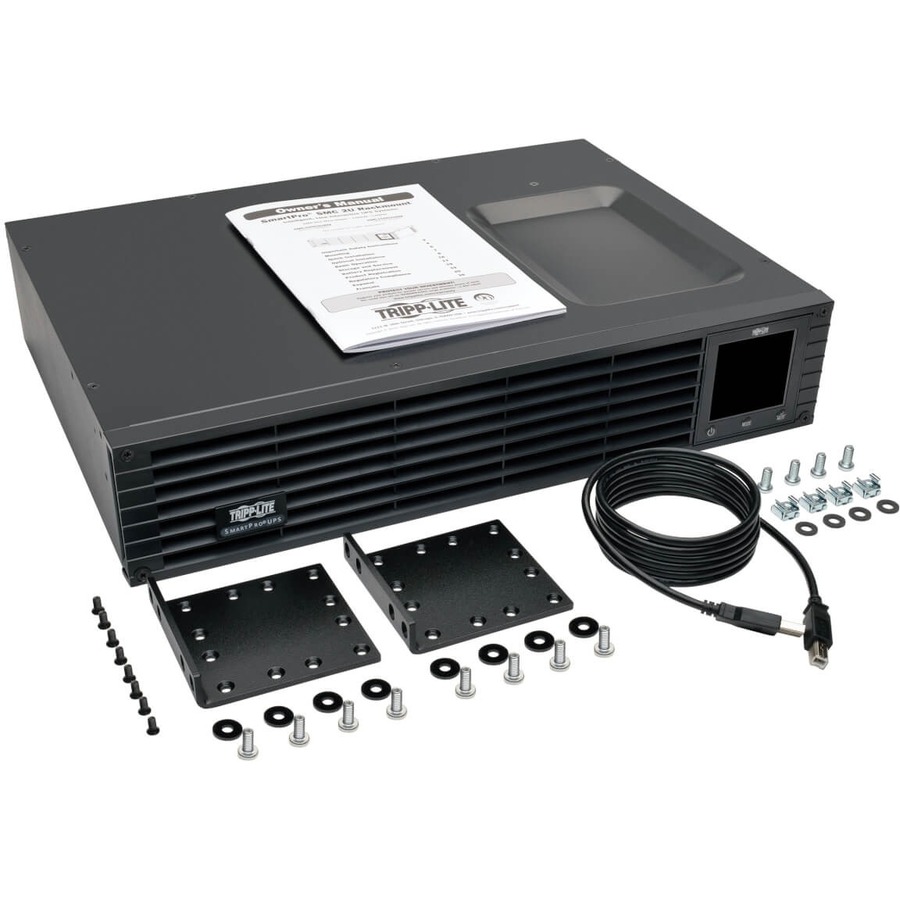

Tripp Lite by Eaton Line-interactive UPS Power Supply
Stock #TRPSMC15002URM2U Rack/Tower - 6.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 8 x NEMA 5-15R - TAA Compliant
- AVR actively corrects brownouts and overvoltages back to usable levels

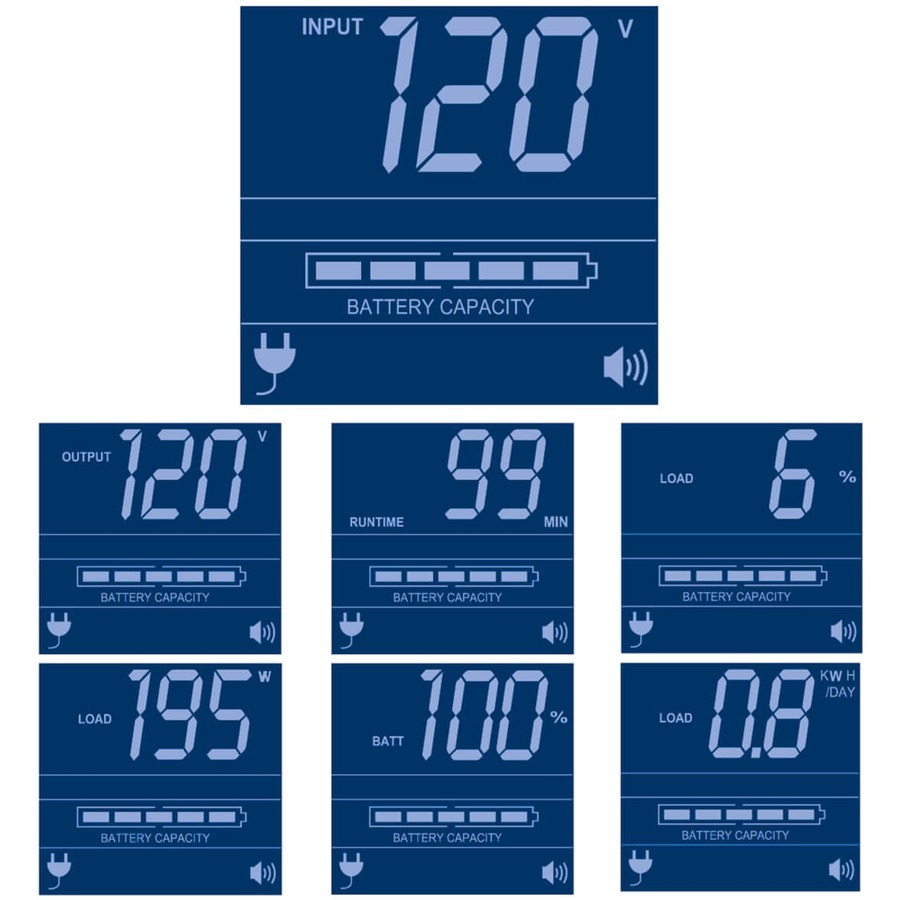

- Interactive LCD interface reports UPS operating mode, detailed UPS and more
- Super-fast switchover maintains operation of equipment without interruption
- 94% line-mode efficiency offers reduced heat emissions and operating costs
- Communications ports enable detailed monitoring of equipment load levels
| Specs: | Detailed Description: |
|---|---|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMC15002URM |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartPro |
| Product Model | SMC15002URM |
| Product Name | Line-interactive UPS Power Supply |
| Product Description |
Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 94 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Protection Type |
|
| Emergency Power OFF | Yes |
| Cord Length | 9.84 ft |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1000 W |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 120 V AC |
| Waveform Type |
|
| Surge Energy Rating | 570 J |
| Circuit Breaker | Yes |
| Alarm |
|
| Battery Management | user-replaceable |
| Status Indicators | LEDs |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Backup/Run Time (Half Load) | 17.70 Minute |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 65.35 W |
| Height | 3.5" |
| Width | 17.3" |
| Depth | 13.5" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 46.50 lb |
| Package Contents |
|
| Certifications & Standards |
UL Listed Certification |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
| Additional Warranty Information |
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty. $250,000 connected equipment insurance |
